Peplink MAX HD4:Engineering Multi-Cellular Resilience for Mission-Critical Networks

Relying on a single cellular carrier for mission-critical data is a calculated risk that often fails when the stakes are highest. In my fifteen years as an engineer, I have found that even the most robust 5G networks have blind spots or capacity limits that can disrupt a live broadcast or a mobile command centre link. The Peplink MAX hd4 platform is designed specifically to mitigate these risks by aggregating four concurrent cellular connections into one logical pipe, providing the redundancy required for high-stakes environments.

I recognise that standard failover is rarely sufficient for professional applications where every packet matters. This technical analysis shares my experience in engineering the hd4 for resilience, moving beyond basic setup to focus on professional-grade deployment. We will cover SpeedFusion configuration for high-bandwidth tasks, thermal management in mobile racks, and antenna selection strategies. My goal is to help you understand how to integrate this hardware into a larger SD-WAN architecture whilst reducing the risk of downtime during critical operations.

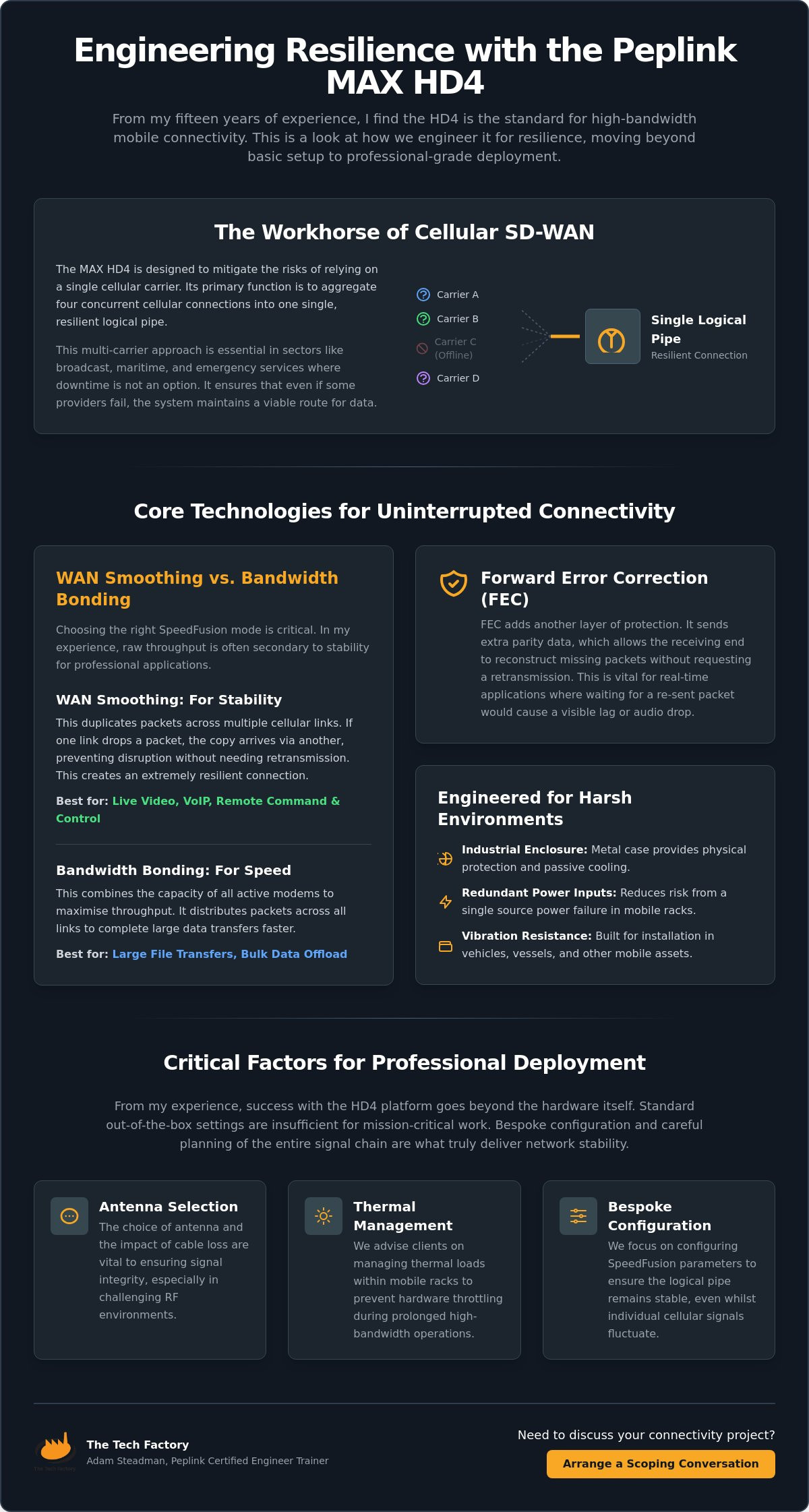

The Peplink MAX HD4: A Foundation for Multi-Cellular Resilience

In my fifteen years of deploying these systems, I have found that the Peplink MAX hd4 remains the standard for high-bandwidth mobile connectivity. I often describe it as the workhorse of cellular SD-WAN. Its primary function is to provide a stable foundation for networks that cannot afford to go offline. By integrating four embedded cellular modems, the device allows for simultaneous connections across multiple network providers. This approach is essential in sectors like maritime and emergency services, where relying on a single carrier is a significant operational risk. The ability to maintain four active paths ensures that even if three providers fail, the system still has a viable route for data.

Key Hardware Specifications and Build Quality

The physical design of the unit is engineered for durability in harsh environments. It features an industrial-grade metal enclosure that provides both physical protection and a degree of passive cooling. Vibration resistance is built-in. This is a vital consideration for installation in vehicles or vessels where constant movement and mechanical stress are factors. The hardware is designed to operate in temperatures that would cause consumer-grade equipment to fail.

Managing power is a critical part of the design process. A system with four active modems, especially the 5G variants, has a higher power draw than standard branch routers. The inclusion of redundant power inputs is a deliberate engineering choice. In my experience, using both inputs from separate power sources reduces the risk of a hardware shutdown due to a local power failure or a loose terminal connection in a mobile rack. We always advise our clients to consider the total power budget of their deployment to ensure the unit has sufficient headroom during peak transmission periods.

The Role of SpeedFusion in the HD4 Ecosystem

Hardware alone does not solve the problem of cellular instability. SpeedFusion is the technology that manages the logical connection. It performs Link Aggregation, which allows the hd4 to bond four separate physical links into one virtual connection. This is the core of the Peplink ecosystem, turning disparate and often unreliable links into a single, resilient pipe.

This bonding process is what enables the high-capacity throughput required for live video or large data transfers. Unlike simple load balancing, which merely distributes sessions across links, SpeedFusion operates at the packet level. This allows it to mitigate the impact of latency spikes and packet loss. If one carrier experiences congestion, the system compensates by shifting the load across the remaining healthy links. Our team focuses on configuring these parameters to ensure that the logical pipe remains stable, even whilst individual cellular signals are fluctuating in the background. It is about creating a predictable environment out of an unpredictable medium.

Engineering Resilience: How Four-Modem Bonding Operates

I have seen many deployments fail because they treat bonding as simple load balancing. In reality, the hd4 operates on a much more sophisticated level. It uses multi-modem bonding technology to break data into packets and distribute them across all active cellular paths simultaneously. This is not just about moving different users to different modems; it is about making a single high-bandwidth stream resilient enough to survive the total loss of a carrier. The bonding engine reassembles these packets at the receiving end, ensuring the application sees a single, stable connection despite the underlying cellular volatility.

Forward Error Correction (FEC) adds another layer of protection to this process. It sends extra parity data that allows the receiving end to reconstruct missing packets without requesting a retransmission. This is vital for real-time applications where waiting for a re-sent packet would cause a visible lag or audio drop. In my experience, combining FEC with intelligent link monitoring provides the highest level of resilience for voice and video traffic whilst maintaining the integrity of the logical pipe.

WAN Smoothing vs Bandwidth Bonding

When we design a network for a broadcast client, raw throughput is often secondary to stability. Bandwidth Bonding combines the capacity of all modems to maximise speed, but WAN Smoothing takes a different approach. It replicates packets across multiple links. If one modem drops a packet due to local interference or a weak signal, the system uses the copy from another link. This reduces the risk of jitter in live video streams. The trade-off is increased data usage, but for mission-critical tasks, the added stability is worth the overhead. Selecting the right balance between these two modes is a core part of the network design services we provide for complex deployments.

Managing Multi-Carrier Diversity

Carrier diversity is non-negotiable for high-stakes connectivity. I recommend using SIMs from at least three different UK providers in an hd4 deployment. This protects against a single network outage or local tower saturation. In crowded event spaces, a single tower can become overwhelmed by thousands of consumer devices. Having modems connected to different masts ensures your traffic has a viable exit route even when one provider is congested.

The device also manages the transition between 4G and 5G signals where applicable. This handoff must be handled carefully to maintain the integrity of the bonded pipe. In our experience, the hd4 excels at monitoring the health of each link in real-time, automatically deprioritising any connection that shows signs of excessive latency or packet loss. This proactive management prevents a single failing link from dragging down the performance of the entire bonded connection.

Deployment Scenarios: Where the HD4 Proves Its Worth

The versatility of the hd4 makes it a primary choice for environments where terrestrial fibre is either unavailable or impractical. In my experience, the hd4 is the standard for mobile command centres. These deployments require a connection that can withstand the movement of a vehicle whilst maintaining a near-seamless link to a central dispatch or operations centre. It is not just about having a connection. It is about having a connection you can trust when significant assets or public safety operations are on the line.

Beyond public safety, we often deploy these units for temporary site offices and large-scale construction projects. These locations often lack fixed-line infrastructure for several months. Using the hd4 as a primary backhaul allows the site team to maintain access to complex BIM models and cloud-based project management tools. If one carrier experiences a local outage or mast failure, the remaining modems continue to carry the traffic. This reduces the risk of a total site shutdown and keeps the project on schedule.

Broadcast and Media Production

For outside broadcast teams, the uplink is the most critical component of the workflow. High-definition video feeds require consistent throughput and minimal jitter to prevent frame drops. We use the hd4 to provide a stable uplink by bonding multiple cellular connections into a single logical pipe. This setup allows production teams to stream live content from remote locations where a single cellular link would inevitably fail under the load. Through Peplink InControl2, we can remotely monitor signal health and carrier performance from a central engineering hub. For organisations requiring a fully managed approach, our Peplink deployment services provide the engineering expertise needed for end-to-end setup and configuration.

Maritime and Offshore Engineering

Maritime connectivity presents a unique set of challenges, particularly regarding signal attenuation over open water. When a vessel moves away from the coast, signal strength drops rapidly as the distance from terrestrial towers increases. Integrating the hd4 with external high-gain maritime antennas is essential to maintain a usable connection. This hardware configuration allows commercial vessels and yachts to aggregate signals from multiple coastal towers, extending their operational range significantly. Our team provides specific Peplink for superyachts advice, focusing on how to balance aesthetic requirements with the technical necessity of clear line-of-sight for antenna arrays to ensure signal integrity.

Critical Design Factors for Successful HD4 Integration

Success with the hd4 depends as much on the physical environment as the software configuration. I have seen technically perfect SpeedFusion tunnels underperform because of poor RF engineering or inadequate environmental planning. When you are relying on four modems to provide a single resilient pipe, every component in the signal path must be optimised for performance. Failure to account for cable loss or thermal buildup can lead to intermittent connectivity that is difficult to diagnose remotely.

RF Engineering and Antenna Selection

Cable loss is a silent performance killer in cellular deployments. At higher frequencies, particularly the 3.5GHz bands used for 5G, even a few metres of low-quality coaxial cable can significantly degrade the signal-to-noise ratio. I recommend keeping cable runs as short as possible and using high-grade, low-loss cabling. For mobile units, omni-directional antennas are the standard choice to maintain a link whilst the vehicle is in motion. However, if the hd4 is being used for a fixed-point application like a temporary site office, directional arrays can provide a much cleaner signal from distant towers.

We also look closely at MIMO (Multiple Input Multiple Output) configurations. The latest versions of this hardware often require 8x8 MIMO support to utilise all available spatial streams effectively. If you co-locate multiple routers, physical separation is essential to prevent the modems from desensitising each other through near-field interference. This requires a calculated approach to antenna placement on the roof of a vehicle or vessel to ensure each modem has a clear path to the mast.

Power and Environmental Considerations

Thermal management is a critical factor in mobile racks. The hd4 uses passive cooling through its metal chassis, which is highly effective only if there is adequate airflow around the unit. In an enclosed rack without ventilation, heat buildup can lead to thermal throttling. This causes the modems to reduce their power output or throughput to protect the internal components. I always advise clients to consider the power budget and heat output of the entire rack, not just the router itself.

Integrating the system with vehicle power requires a stable DC source. Voltage drops during engine ignition can cause hardware resets if the power supply is not properly buffered. We typically use ignition-sensing power controllers to manage the startup and shutdown cycles, ensuring the router remains online during brief power fluctuations. For organisations planning complex mobile installations, our network design consultancy provides the engineering oversight needed to ensure that power, cooling, and RF paths are all correctly specified for mission-critical use.

SIM management is the final piece of the puzzle. When moving between regions or countries, roaming behaviours can vary significantly between carriers. We configure the connection settings to prioritise SIMs with the fastest registration times and most stable roaming agreements. This proactive management ensures that the bonded connection remains viable even whilst individual modems are negotiating new network handoffs.

Professional Deployment: Moving Beyond Out-of-the-Box Settings

I have often observed that the most capable hardware is only as effective as the logic applied to its configuration. Whilst the hd4 is a formidable piece of engineering, the default factory settings are rarely sufficient for mission-critical tasks. These settings are designed for general connectivity rather than the specific, high-stakes requirements of broadcast or public safety. Our team focuses on bespoke SpeedFusion configuration, ensuring that different traffic types are handled according to their priority. For instance, we might apply WAN Smoothing to critical VoIP or video control streams whilst using standard bonding for bulk data transfers. This granular approach ensures that essential services remain stable even when the cellular environment is under stress.

Visibility is another often-overlooked factor. For organisations managing a fleet of vehicles or vessels, a custom management portal provides the necessary oversight to monitor signal health and data consumption across the entire deployment. This level of control is what separates a standard router installation from a professional-grade network architecture. It allows technical leads to identify potential issues before they impact operational performance.

The Tech Factory Approach to Network Design

When I begin the initial scoping for a Peplink deployment, I start with the desired outcome rather than the hardware. We look at the carrier landscape, the physical installation constraints, and the specific data requirements of the client. InControl2 plays a central role in large-scale hd4 rollouts, allowing us to push configuration updates and monitor performance metrics in real-time. This transition from simple hardware supply to a fully managed service allows our clients to focus on their core operations whilst we manage the underlying connectivity architecture. Our managed services include proactive monitoring and regular performance reviews, ensuring the network evolves alongside your operational demands.

Building In-House Competence

Technical training is essential for long-term operational success. As a Peplink Certified Engineer Trainer with 15 years of experience, I have seen how much more effective a deployment becomes when the in-house team understands the nuances of the hardware. A technical training course for these multi-cellular units covers everything from RF fundamentals to advanced SpeedFusion tuning and InControl2 management. It equips your team with the skills to troubleshoot local issues and optimise the network as operational needs change. This investment in knowledge reduces the reliance on external support for routine adjustments and ensures your organisation maintains a high level of technical proficiency.

The device is an exceptional tool, but it is ultimately just one component of a wider system. The design is the true solution. Engineering a resilient network requires a deep understanding of both the hardware and the environment in which it operates. I invite you to get in touch for a brief scoping conversation regarding your connectivity requirements. Whether you need assistance with network design, deployment, or specialised training, our team is here to provide the engineering expertise your project demands.

Engineering for Operational Stability

The technical resilience of your network depends on more than just high-specification hardware. Throughout this analysis, we have focused on the fundamental requirement for multi-carrier diversity, the mechanics of packet-level bonding, and the critical environmental factors that impact long-term performance. The MAX hd4 platform provides the necessary foundation, but the final result is always a product of meticulous network design and bespoke SpeedFusion configuration.

As a Peplink Certified Engineer Trainer with over 15 years of experience, I recognise that every mission-critical environment has its own unique set of challenges. The Tech Factory acts as a specialist advisor to Peplink’s largest global distributor, and we are personally invested in the success of every deployment we oversee. If you are planning a high-stakes rollout, I invite you to contact me for a brief scoping conversation. We can discuss your specific requirements and ensure your infrastructure is engineered for maximum reliability. I look forward to hearing about your project.

Frequently Asked Questions

What is the maximum throughput of the Peplink MAX HD4?

The maximum rated throughput of the Peplink MAX HD4 MBX 5G is 2.5 Gbps. This capacity allows the device to handle high-bandwidth tasks across multiple bonded links simultaneously. In real-world deployments, the actual performance will depend on carrier signal quality and the specific SpeedFusion settings applied. We find this headroom is essential for maintaining stable connections during peak data periods in maritime or broadcast environments.

Can I use SIM cards from different countries in the HD4 simultaneously?

You can use SIM cards from different countries simultaneously within the device. The eight SIM slots allow for multiple regional providers to be active or held in standby. This is particularly useful for international transport or maritime vessels moving between territorial waters. I often configure these systems to prioritise local SIMs based on GPS location to manage roaming costs whilst maintaining a resilient logical connection.

Does the Peplink HD4 support 5G connectivity?

Yes, the latest versions of the hd4 platform support 5G connectivity through four internal modems. These units use Qualcomm X65 modems capable of falling back to LTE CAT-20 when 5G is unavailable. In my experience, utilizing 5G Standalone networks significantly reduces latency for mission-critical applications. This makes the hardware an ideal choice for mobile command centres and outside broadcast teams requiring high-capacity uplinks.

What is the difference between the HD4 and the HD4 MBX?

The primary difference lies in the processing power and the modular nature of the hardware. The HD4 MBX is a higher-performance platform designed to handle 2.5 Gbps of throughput, whereas the legacy HD4 has lower processing limits. The MBX also features swappable cellular modules. This allows for easier hardware upgrades as modem technology evolves, providing a degree of future-proofing that is not available on the standard fixed-modem units.

Is a SpeedFusion license required for the HD4 to function?

A SpeedFusion license is not required for basic routing, but it is essential for Bandwidth Bonding and WAN Smoothing. Most modern units include these capabilities as part of a PrimeCare subscription. Without an active license, you cannot aggregate multiple links into a single logical pipe. Our team always includes SpeedFusion configuration in our network designs to ensure the multi-link resilience our clients expect from professional-grade hardware.

How do I manage multiple HD4 units across a global fleet?

We use Peplink InControl2 to manage and monitor global fleets from a single centralised interface. This cloud-based platform provides real-time visibility into signal health, data consumption, and GPS location for every hd4 in the field. It also allows us to push configuration updates and firmware patches across the entire fleet simultaneously. This ensures that security standards and performance optimisations are maintained without needing physical access to the hardware.

What antenna configuration do I need for the HD4 in a vehicle?

A standard 5G vehicle installation requires a 4x4 MIMO antenna array for each of the four modems. This results in 16 cellular antenna connections to achieve maximum throughput and signal stability. We typically specify high-quality rooftop omni-directional antennas to ensure consistent reception whilst the vehicle is in motion. It is critical to maintain proper physical separation between these antennas to prevent near-field interference from degrading the signal-to-noise ratio.

Does the HD4 support dual-radio Wi-Fi for client connectivity?

Yes, the device supports dual-band Wi-Fi for client connectivity, operating on both 2.4GHz and 5GHz frequencies. This allows the router to function as a local access point whilst simultaneously using Wi-Fi as a WAN source if a local network is available. In a mobile command centre, this provides a reliable local network for personnel whilst the cellular modems handle the primary backhaul. We often configure separate SSIDs to prioritise critical traffic over general data.
