How to Configure SpeedFusion:An Engineer’s Guide to Resilient Peplink Tunnels

A SpeedFusion tunnel is only as resilient as the engineering logic behind its configuration; simply enabling the feature is rarely enough to protect a mission-critical session. In my work as a Peplink Certified Engineer Trainer, I often see deployments where the hardware is capable, but the tunnel settings do not account for the specific behaviour of the underlying WAN links. You likely recognise the frustration of a session dropping during a live broadcast or a remote operation, even when multiple connections are active. This guide explains how to configure SpeedFusion to ensure your network remains stable when individual carriers or hardware components fail.

I have spent over 15 years refining these setups for sectors where connectivity failure is not an option. This article provides a practitioner's workflow for building a validated, multi-link tunnel that reduces the risk of downtime. I will explain the precise differences between Bandwidth Bonding and WAN Smoothing, whilst showing you how to choose the right sub-features for your specific environment. We will move through a methodical process to achieve a configuration that supports near-seamless failover, providing you with a predictable and stable logical connection.

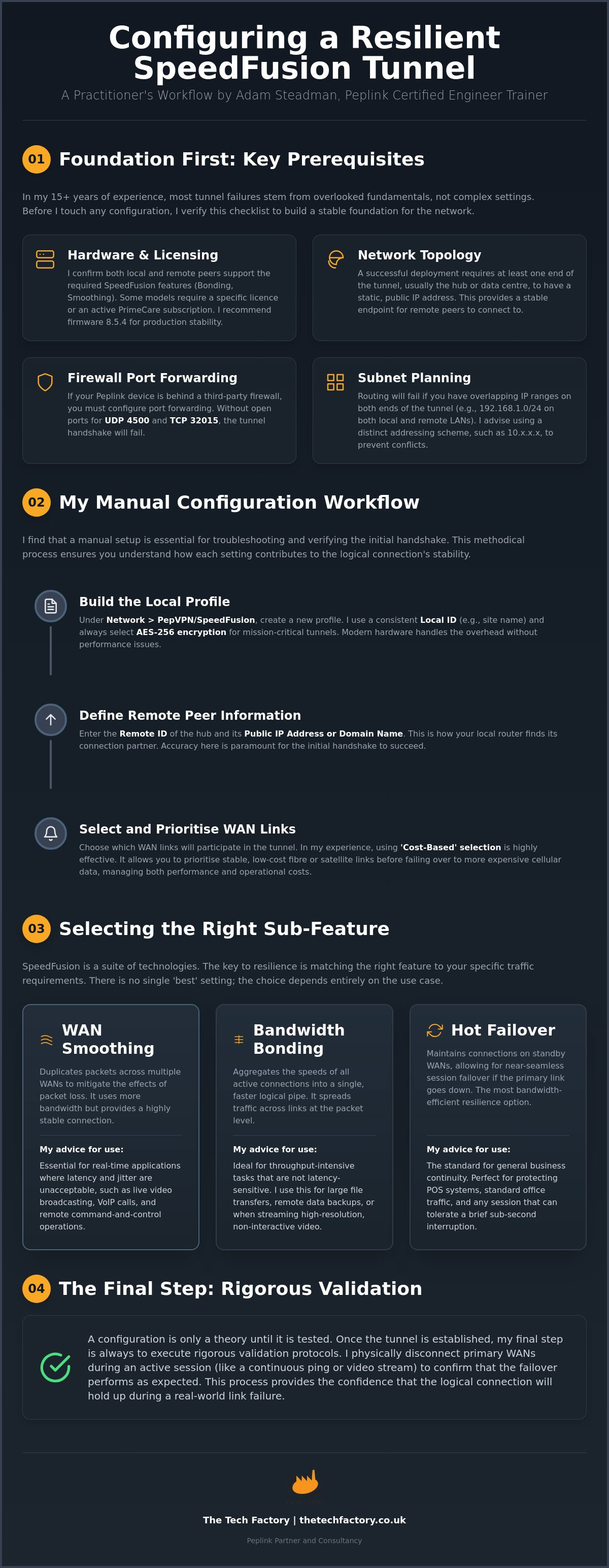

Prerequisites and Architecture for SpeedFusion Deployment

Before addressing the specifics of how to configure SpeedFusion, we must establish a solid architectural foundation. A tunnel is only as reliable as the environment it is built upon. Unlike standard VPN protocols, SpeedFusion is a sophisticated form of link aggregation that combines multiple physical connections into a single, resilient logical pipe. If the hardware or network path is not correctly provisioned, advanced features like WAN Smoothing will underperform. I have found that most configuration failures stem from overlooked prerequisites rather than the settings themselves.

I often see engineers confuse PepVPN with the full SpeedFusion suite. PepVPN is the base protocol used for a single-link connection. SpeedFusion adds the multi-link capabilities that define Peplink's resilience: Bandwidth Bonding, Hot Failover, and WAN Smoothing. You must ensure your hardware supports these sub-features before starting the deployment. In my experience, verifying the feature set on both the local and remote peers is the first step in any mission-critical design.

Hardware and Licensing Considerations

Most modern MAX and Balance routers include SpeedFusion capabilities, but some entry-level models require a separate license or an active PrimeCare subscription. For instance, a Balance One or a MAX Transit may require a specific license to enable bonding. Check the "Feature Add-ons" section in the web admin to confirm status. Both units should run compatible firmware; whilst version 8.6.0 is in release candidate stages, I currently recommend version 8.5.4 for stable production environments. If you are using FusionHub as your remote peer, ensure the virtual instance is provisioned with enough throughput capacity to handle the aggregated bandwidth of your remote sites.

Network Topology and IP Requirements

A successful deployment requires at least one end of the tunnel to have a static, public IP address. This is typically the "Hub" or the data centre appliance. If your Peplink sits behind a third-party firewall, you must configure port forwarding for UDP 4500 and TCP 32015 to allow the tunnel to establish. Without these ports open, the handshake will fail.

Subnet planning is equally critical. You cannot have overlapping IP ranges on both ends of the tunnel. If both the local and remote LANs use 192.168.1.0/24, routing will fail. I suggest using a distinct addressing scheme, such as a 10.x.x.x range, for your corporate or broadcast network to prevent these conflicts. Meticulous planning at this stage reduces the risk of session drops later in the project.

How to Configure SpeedFusion Manually via Web Admin

Navigating the Peplink Web Admin is the first practical step in establishing your tunnel. Once logged in, you will find the PepVPN/SpeedFusion settings under the Network tab. This interface allows for granular control over every aspect of the link. While InControl 2 is useful for bulk deployments, I find that manual configuration is essential for troubleshooting and verifying the initial handshake between peers. Understanding the manual process ensures you can maintain connectivity even when cloud management is unavailable.

The logic behind this setup mirrors broader industry standards for multi-path communication. The Multipath TCP architectural guidelines provide a technical foundation for how multiple paths should be managed to improve reliability. When learning how to configure SpeedFusion, you are essentially applying these high-level principles to your specific hardware. You are telling the router exactly how to treat each WAN link to ensure the logical connection remains stable during physical link fluctuations.

Building the Local Profile

The Local ID is a critical identifier that the remote peer uses to authenticate the connection. I recommend a consistent naming convention across your organisation; using the device serial number or a descriptive site name is common practice. Security must be a priority. I always use AES-256 encryption for mission-critical tunnels. Whilst this places a higher load on the CPU, modern Peplink hardware is designed to handle this overhead without compromising performance. You should also define which WAN links participate in the tunnel. In my experience, using 'Cost-Based' selection allows you to prioritise stable, low-cost fibre or Starlink connections before falling back to more expensive cellular data.

Defining the Remote Peer Information

After setting the local parameters, you must define the remote peer. This requires the Remote ID of the hub and its public IP address or hostname. If your hub sits behind a firewall, ensure the Data Port settings match the port forwarding rules you established in the prerequisites. Once these details are saved, the router will attempt to initiate a handshake. If you find this process complex or require a bespoke design for a large fleet, our team can assist with professional Peplink deployment and configuration services. Finalise the setup by applying the changes and monitoring the status page to confirm the tunnel has reached an 'Established' state.

Selecting the Right SpeedFusion Sub-features for Your Use Case

SpeedFusion is frequently misunderstood as a single "on" switch. In reality, it is a suite of distinct technologies designed to solve specific network challenges. Knowing how to configure SpeedFusion effectively requires you to match these sub-features to the technical requirements of your data. This alignment is a fundamental part of engineered business continuity and network redundancy. If you apply the wrong feature to a specific traffic type, you may experience unnecessary overhead or poor application performance.

The most basic implementation is Hot Failover. This keeps a secondary tunnel in a hot-standby state, allowing for a near-seamless transition if the primary link fails. Whilst this is sufficient for basic web browsing, it does not protect against packet loss on an active link. For mission-critical scenarios like live broadcast or emergency services communication, we must utilise WAN Smoothing or Bandwidth Bonding to maintain session integrity. I always begin by categorising the client's traffic: is the priority throughput, or is it the elimination of jitter?

WAN Smoothing for Real-time Resilience

I often recommend WAN Smoothing for broadcast feeds and VoIP where even minor packet loss is unacceptable. This feature works by sending redundant copies of each packet across multiple WAN links simultaneously. If one link drops a packet due to interference or congestion, the remote peer uses the redundant copy from the second link. This provides a stable stream without the need for retransmissions. You must account for the bandwidth overhead; sending two copies of every packet effectively doubles your data usage and halves your potential throughput. In my experience, adjusting the Smoothing Level to 'Medium' provides the best balance for 5G and LTE connections.

Bandwidth Bonding for High-Throughput Scenarios

Bandwidth Bonding aggregates diverse links into one logical pipe to increase total capacity. This is the standard choice for large file transfers or high-bitrate video uploads where a single connection is insufficient. The technology splits data at the packet level across all active WANs. For this to remain stable, link latencies should be relatively similar. If you bond a low-latency fibre line with a high-latency satellite link, the out-of-order packet buffer can become a bottleneck. In my experience, Bonding works best when you group links with similar performance characteristics to ensure a steady and predictable data flow.

Orchestrating Tunnels via Peplink InControl 2

While manual configuration is vital for understanding link mechanics, scaling that process across twenty or fifty sites requires a more efficient approach. Peplink InControl 2 serves as the orchestration layer for these environments. It allows you to move away from individual device management and towards a policy-based model. Learning how to configure SpeedFusion through InControl 2 reduces the risk of human error; in my experience, manual entry mistakes are the primary cause of tunnel instability in complex deployments. Centralised orchestration ensures that every node in your network follows a uniform set of engineering rules.

The platform provides a visual interface for what would otherwise be a series of complex CLI or web admin tasks. You can see the entire topology at a glance, from the health of individual cellular links to the status of the aggregated logical tunnel. This visibility is not just a convenience. It is a requirement for mission-critical oversight. When a link begins to degrade, InControl 2 allows you to identify the bottleneck before it impacts the end-user session.

Creating a SpeedFusion Configuration Template

The process begins by defining your hub and spoke devices within the InControl organisation. You then create a configuration template that defines the tunnel parameters, such as encryption levels and the sub-features we discussed previously. This template is then pushed to dozens of remote sites simultaneously. This ensures that every spoke adheres to the same security and performance standards. For a more detailed analysis of the platform's broader management capabilities, you should refer to our guide on Peplink InControl configuration. Using templates means a single update to the hub profile can be propagated across the entire fleet in seconds.

Managing Multi-site Topologies

InControl 2 simplifies the deployment of various network structures, allowing you to select between Star (Hub-and-Spoke) and Point-to-Point tunnel structures. I typically recommend a Star topology for broadcast and maritime sectors where traffic must be centralised through a high-capacity data centre or a FusionHub instance. The system automates the necessary firewall rules and route advertisements, which prevents the routing loops and conflicts often found in manual multi-site setups. If you are responsible for a large-scale deployment and require a validated network design, we provide specialist Peplink deployment and consultancy to ensure your orchestration is correctly engineered from the start. This automated approach turns a high-stakes technical task into a repeatable, reliable process.

Troubleshooting and Validation Protocols

A green "Established" light on the status page is the beginning of the validation process, not the end. In my experience, many engineers stop once they see a successful handshake, but a truly resilient configuration requires stress testing under load. Understanding how to configure SpeedFusion includes knowing how to interpret diagnostic data when environmental conditions degrade. I always recommend a methodical approach to verification to ensure the tunnel behaves as expected when a physical link actually fails.

I also utilise the built-in WAN Analysis tool to stress-test the tunnel throughput. This tool allows you to send test traffic between two Peplink peers to measure the actual capacity of the bonded connection. Following this, I perform a "pull-the-plug" test. By physically disconnecting the primary WAN link during a live session, you can validate that the failover is near-seamless. If the session drops or stutters significantly, your Smoothing or sub-feature settings require further refinement to handle the transition correctly.

Analysing Tunnel Status and Latency

The PepVPN status screen is your primary tool for real-time diagnostics. I look for frequent "Starting" or "Authenticating" loops, which often indicate an MTU mismatch or aggressive firewall filtering. You should also review link-specific latency and packet loss metrics. If one cellular carrier shows significantly higher jitter than the others, it may be dragging down the performance of the entire bonded pipe. For complex setups, I view SpeedFusion configuration as a single component of a wider multi-WAN network design. Identifying an underperforming carrier early allows you to adjust your link priority or Smoothing levels before the session is impacted.

Scoping Your Deployment with Specialist Support

Deploying these technologies in sectors like broadcast, maritime, or public safety carries high stakes where failure is not an option. Whilst the basic steps are accessible, professional Peplink deployment services are vital for ensuring long-term stability in unpredictable environments. Engaging a network design consultancy UK allows you to benefit from 15+ years of practitioner experience, avoiding common pitfalls such as overlapping subnets or mismanaged out-of-order packet buffers. A correctly engineered configuration reduces the risk of downtime by accounting for the unique physical and logical challenges of your specific site. Our team focuses on creating a validated setup that prioritises technical competence over standard marketing defaults.

Optimising Your Mission-Critical Tunnel Infrastructure

Establishing a resilient network is a process of meticulous design rather than a one-off task. By now, you should understand that knowing how to configure SpeedFusion involves more than just enabling a feature; it requires a deep understanding of link behaviour, sub-feature selection, and rigorous validation. We have covered the architectural prerequisites, the manual handshake process, and the efficiency of InControl 2 orchestration. In my experience, the most successful deployments are those that prioritise validation protocols to confirm near-seamless failover before a site goes live.

If you are managing a complex deployment in the maritime or broadcast sectors, you might value a professional perspective on your network design. I have spent over 15 years engineering connectivity for high-stakes environments as a Peplink Certified Engineer Trainer. You are welcome to book a scoping call with me to discuss your Peplink deployment requirements. A well-engineered tunnel provides a stable foundation for your organisation's connectivity, and I look forward to helping you achieve that resilience.

Frequently Asked Questions

Do I need a public IP on both ends to configure SpeedFusion?

You only require a static, public IP address on one end of the tunnel, which is typically the hub or data centre appliance. The remote peer can sit behind a carrier-grade NAT or a standard cellular connection whilst still initiating the handshake. As long as the hub is reachable via its public IP and the correct ports are open, the tunnel will establish successfully.

What is the difference between PepVPN and SpeedFusion?

PepVPN is the foundational Peplink protocol used to create a secure tunnel over a single WAN link. SpeedFusion is the advanced suite of technologies that allows for multi-link aggregation, including Bandwidth Bonding, Hot Failover, and WAN Smoothing. Understanding how to configure SpeedFusion correctly is what allows you to aggregate multiple physical connections into one resilient logical pipe.

Can I bond links from different providers, such as Starlink and 5G?

Yes, you can bond links from entirely different providers and transport technologies. SpeedFusion is designed to aggregate diverse connections, such as high-latency satellite and low-latency cellular, into a single connection. In my experience, this is the most effective way to achieve resilience in remote or mobile environments where a single provider cannot be relied upon.

How much bandwidth overhead does WAN Smoothing add?

WAN Smoothing adds significant overhead because it sends redundant copies of every packet across multiple links. At the standard level, it effectively doubles your data usage and reduces your potential throughput by approximately half. I recommend using this feature only for real-time traffic like VoIP or live video feeds where the priority is the elimination of jitter rather than total speed.

Why is my SpeedFusion tunnel showing as 'Starting' but not connecting?

A tunnel stuck in the 'Starting' or 'Authenticating' phase usually indicates a firewall restriction or an ID mismatch. You should ensure that UDP port 4500 and TCP port 32015 are correctly forwarded to the Peplink at the hub end. I also suggest double-checking that the Local and Remote IDs defined in your profiles match the serial numbers or identifiers of the peer units.

Do I need a special license to enable Bandwidth Bonding?

Certain entry-level Peplink models require a specific license or an active PrimeCare subscription to enable the full SpeedFusion suite. Devices like the Balance One or some MAX Transit models may ship with PepVPN only as standard. You should check the "Feature Add-ons" section in your device's web admin to confirm the current licensing status before attempting a multi-link configuration.

Is SpeedFusion compatible with non-Peplink routers?

SpeedFusion is a proprietary Peplink technology and is not compatible with third-party routers from other manufacturers. To establish a tunnel, you must have a Peplink device or a FusionHub virtual appliance at both ends of the connection. This proprietary approach is what allows the system to manage packet-level aggregation and near-seamless failover across diverse WAN links.
